SKU: AHSSW2914_JN14183

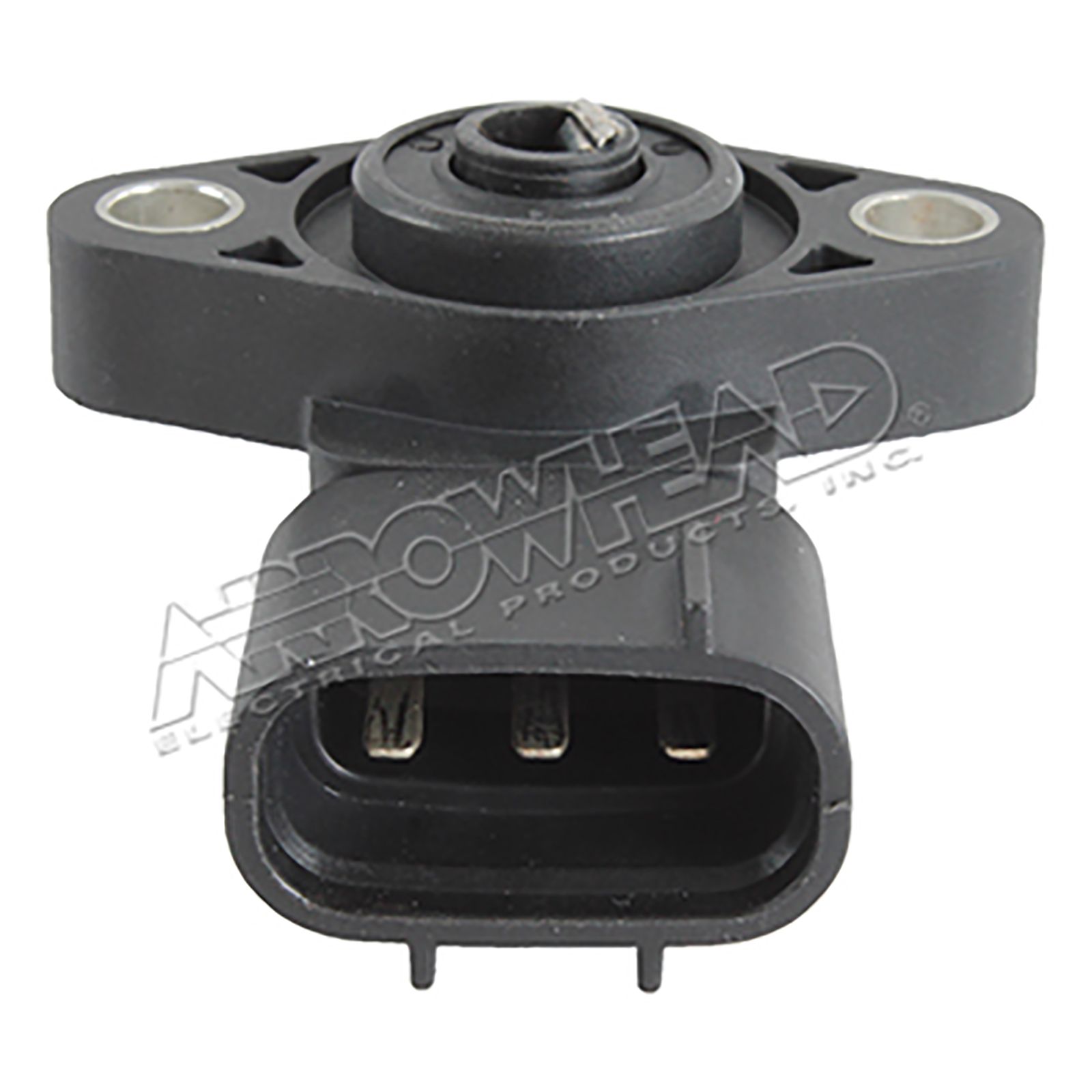

Shift Sensor Kit for Honda ATV TRX420Fpa 2009 To 2013 | TRX420Fpe 2011 To 2013
Description
A common component in modern ATV's & UTV's, the shift angle sensor detects the position of the gear, such as first or second, and sends the data as electric signals back to the ECU. If this sensor goes bad, the ECU stops things working, essentially saving the transmission from any further damage.
HOW TO INSTALL
1. Inspection:
- Check to ensure wires are not kinked or damaged, and all connections are clean and free.
2. Installation:
- Coat new O-ring with engine oil and install into sensor groove.
- Carefully install the angle sensor by aligning the flat surfaces of the sensor shaft hole and gearshift spindle end.
- Apply locking agent into threads of the sensor bolts.
- Install two bolts and tighten.
- Connect the connector.
Specifications
| SKU | AHSSW2914_JN14183 |
| Brand | Arrowhead |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
